LEBIH BESAR DAN LEBIH BAIK. REVOLUSI PERCETAKAN TEKSTIL

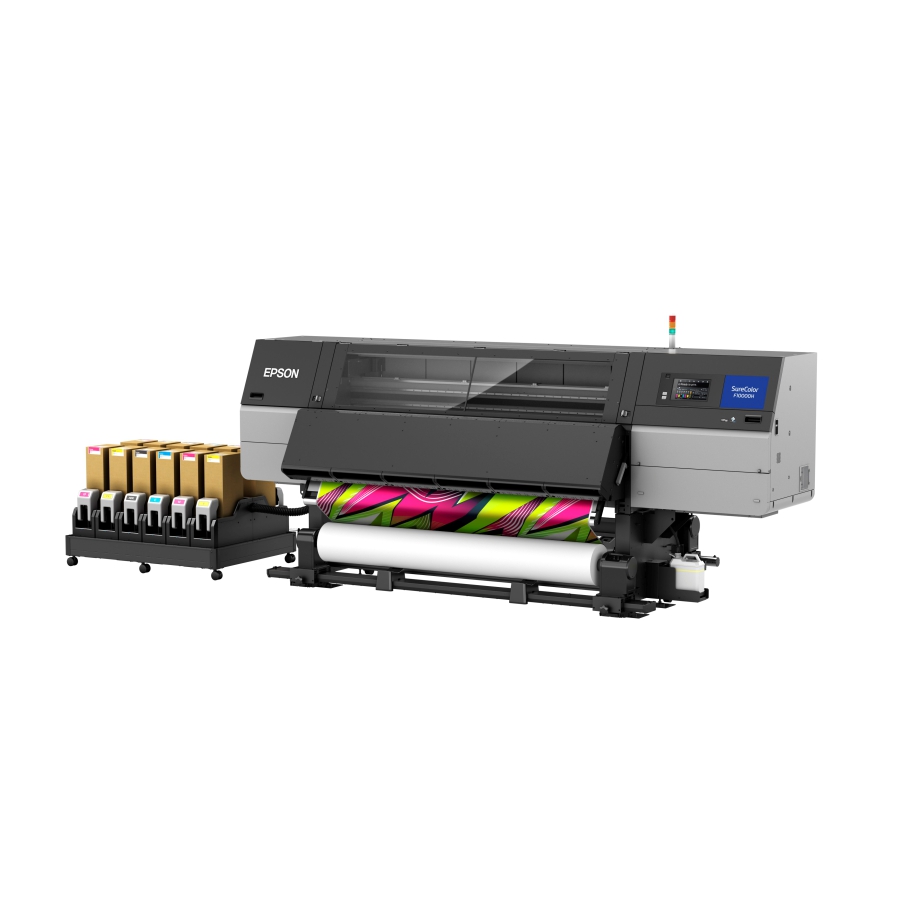

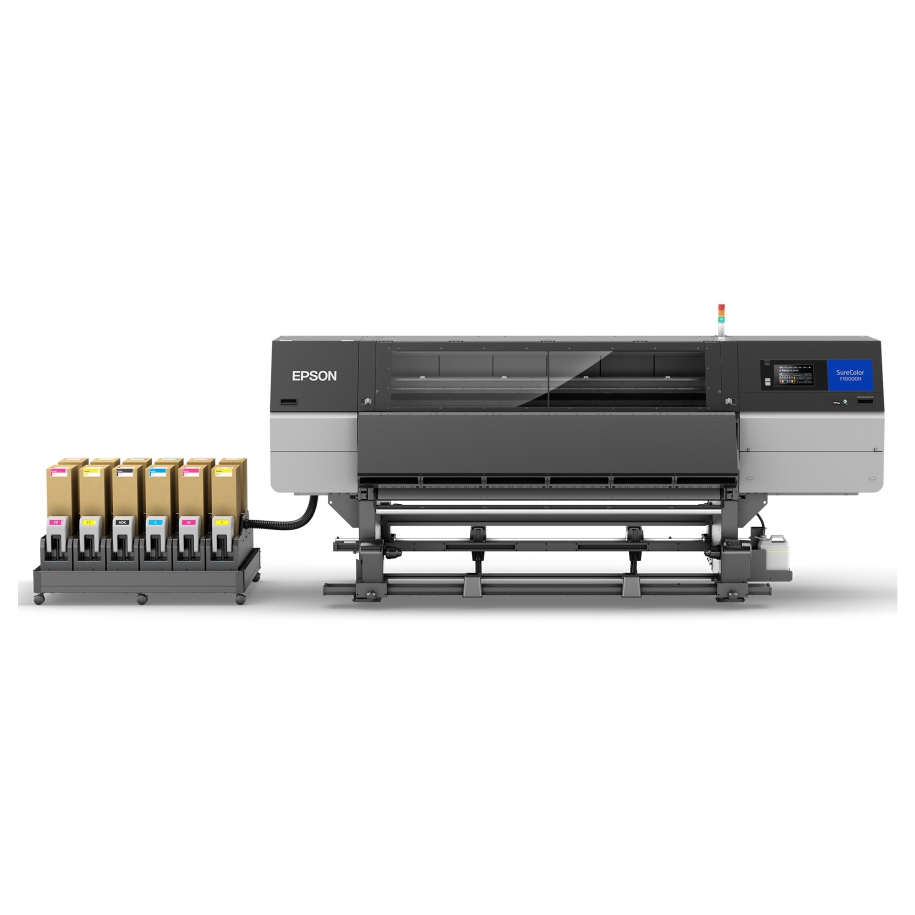

Memperkenalkan printer tekstil sublimasi pewarna SureColor SC-F10030H Epson, di mana efisiensi, kecepatan, dan keandalan yang tinggi merupakan pusat keberhasilan bisnis. Dengan printhead PrecisionCore Micro TFP baru dan pengering terintegrasi, produktivitas yang lebih besar tercapai. Nikmati kualitas cetak terbaik karena Teknologi Precision Dot memanfaatkan teknologi baru yang dioptimalkan untuk menghasilkan cetakan yang menakjubkan. Dibangun untuk mengurangi waktu henti, fungsi perbaikan sendiri dan fitur Epson Cloud Solution PORT memungkinkan pengguna untuk dengan mudah mengganti komponen tertentu sendiri untuk manajemen armada printer yang mudah dan mulus.
- Printer sublimasi pewarna roll-to-roll kinerja tinggi 76-inci pertama Epson

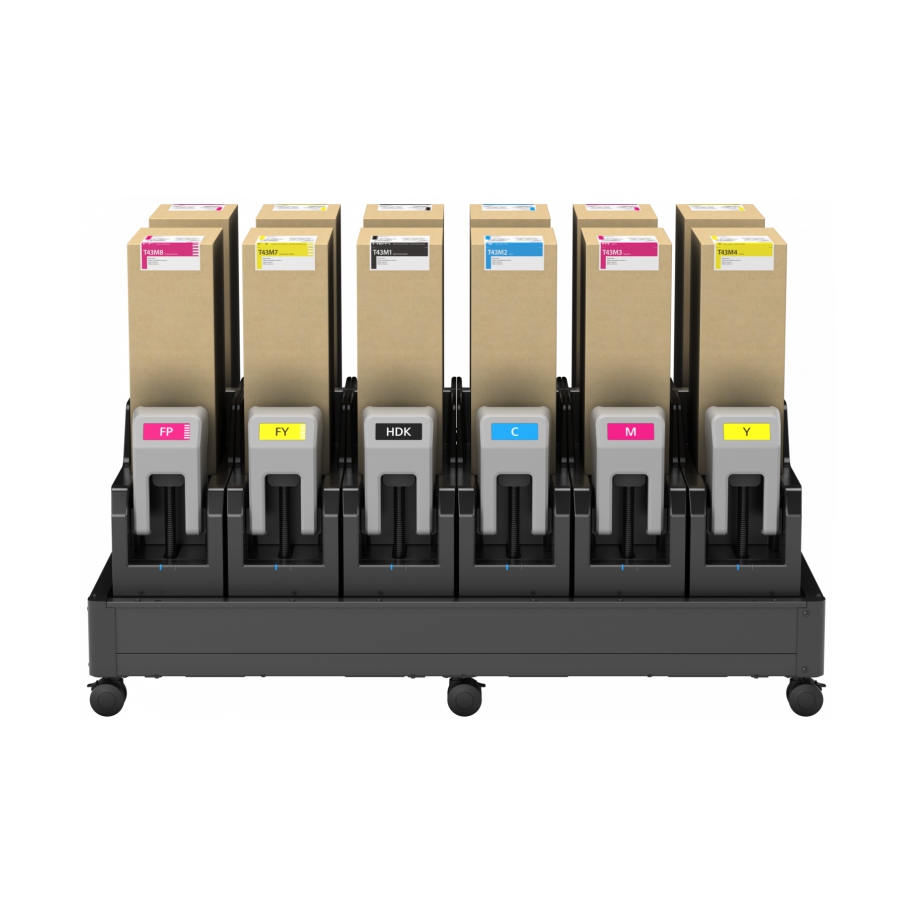

- Sistem Tinta Massal dengan 2 set set tinta 10L untuk volume cetak ultra-tinggi
- Kontrol Ketegangan Otomatis Tingkat Lanjut untuk pengumpanan media yang akurat dan stabil
- Printhead Micro TFP PrecisionCore 4,7” baru untuk produktivitas yang lebih tinggi
- Inkset 6 warna terdiri dari tinta standar CMYK dengan pilihan Fy/Fp atau Lc/Lm
Printing Technology:
PrecisionCore inkjet technology
Variable-Sized Droplet Technology
Printhead: PrecisionCore Micro TFP Printhead
Nozzle Configuration:
19,200 nozzles
CMYKLcLm: 19,200 nozzles
(3,200 nozzles x 6 colours)
CMYKFpFy: 19,200 nozzles
(3,200 nozzles x 6 colours)
Maximum Print Resolution:
1,200 x 1,200 dpi (With 300 x 300 dpi 16 Half Tone layers)
Maximum Print Resolution:
1,200 x 1,200 dpi (With 300 x 300 dpi 16 Half Tone layers)
Minimum Ink Droplet Size:
3.8 pl
Print Speed:
Maximum print speed of 246sqm/h
Margin (Roll Paper):
7 mm (Right / Left), 5 mm (top), 5 mm (Bottom)
(14 mm when using Media Holding Plates)
Ink Type:
Dye Sublimation Transfer Ink
Ink Capacity:
Pack: 10,000ml
Colours:
Cyan, Magenta, Yellow, High Density Black, Light Cyan, Light Magenta or Cyan, Magenta, Yellow, High Density Black, Fluorescent Pink, Fluorescent Yellow
Temperature:
Operating: 10°C - 35°C
Storage (before unpacking): -20°C - 60°C 1 month at 40ºC, 120 hours at 60ºC
Storage (after unpacking): -20°C - 40°C 1 month at 40ºC
Humidity:
Operating: 20 - 80% (no condensation)
Storage: 5 - 85% (no condensation)
Paper Path:
Friction Feed
Maximum Diameter / Weight:
Max. diameter 250 mm / 60 Kg (Roll)
Max. diameter 250 mm / 60 Kg (Reel)
Paper Width (Roll):
300 mm - 1,950 mm (Take-up reel support over than 914.4 mm)
Paper Thickness (Roll):
up to 1 mm
Roll Paper Remaining:
The remaining amount is managed on control panel.
Weight:
Approx. 767 kg (Without ink cartridges)
Printing Dimensions (W x H x D):
5,008 x 1,886 x 1,303 mm
Storage Dimensions (W x H x D):
5,008 x 1,886 x 1,303 mm
Operating:
Approx. 4.4kw
Ready:
Approx. 230W
Sleep:
Approx. 230W
Power Off (Stand by):
Approx. 9.6 W
Win PC System Requirement:
Windows PC System: CPU: Intel Corei3 3.0GHz or faster (released after April 2014) Memory: Memory more than 8GB HDD
(Free space during installation: 50GB or more)
Mac System Requirement: CPU: Multicore 3.0GHz Memory: Memory more than 4GB HDD: Free space more than 2GB
Utility Software (Bundled in CD):
Windows only: Epson Communication Driver, Installer Package, Epson Software Updater, EpsonNet, PrintEpsonNet, SetupEpsonNet Confi g SE, Epson Manual Launcher, User’s Guide (Excerpt), Epson Edge Print PRO
Utility Software (Web delivery):
Windows only: Epson Communication Driver, EpsonNet Print, EpsonNet Setup, LFP Accounting Tool
Windows and Mac: Epson Web Installer, Epson Software Updater, EpsonNet Confi g SE, Epson Edge Dashboard, Epson Manual Launcher, Online Manual, Epson Video Manuals, User’s Guide (Excerpt), User’s Guide, Network Guide, Start-Up Guide
